This product introduction-

Product materials—

Hardware/electronics/plastics

Product number: SCY-16106

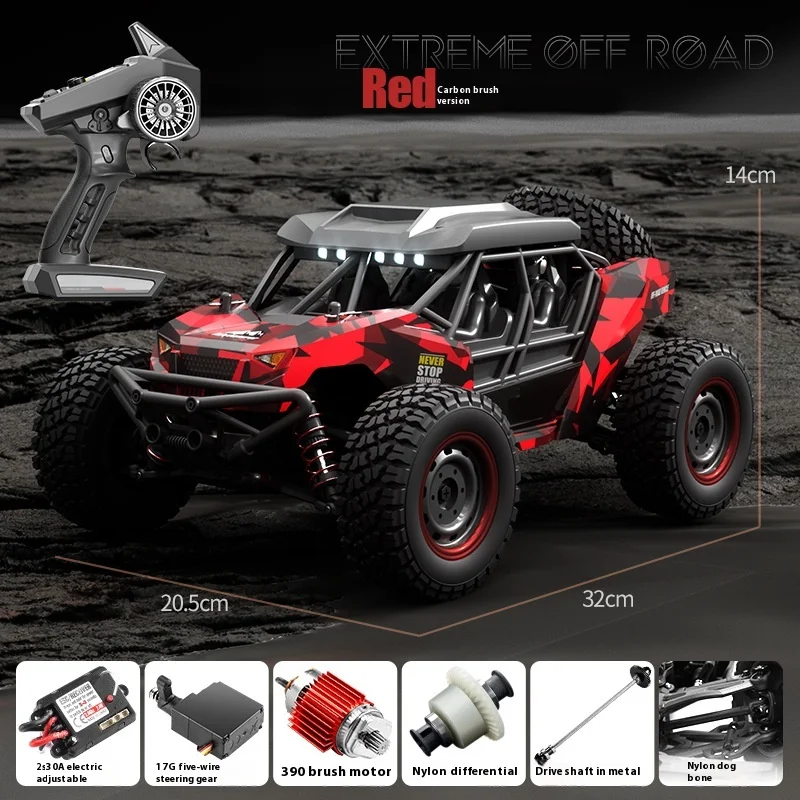

Product name: 1/16 electric four-wheel drive off-road vehicle (desert card)

Product color: red/dark gray

Product battery: 7.4V 1300mAH 10C lithium ion battery (T plug)

Weight of single unit (including battery) kg: 1.1

Single package weight (including color box) kg: 1.8

7.4V 1300 weight (g): 89.2

Remote control battery: 3 * “AA” (to be purchased separately)

Charging: USB cable

Vehicle light configuration: LED headlamp, LED roof headlamp and LED roof rear lamp.

Differential structure: front and rear nylon gear planetary differential

Motor: RC390 high-speed carbon brush with strong magnetism (magnetic protection+heat sink)

Electric adjustment: 30A2 integrated control (splash-proof)

Product speed (km/h): 38

Remote control time (minutes): 15-18

Charging time (minutes): 180-210

Remote control distance (m): ≥80

Gross weight/net weight (kg): 11.8/10.8

Product specification (cm): 32 * 20.5 * 14

Specification of remote controller (cm): 13 * 7.5 * 21

Color box size (cm): 33.5 * 19.4 * 23.7

Protection function: 1. Charging; 2. stuck; 3. High temperature; 4. Low pressure

Product configuration:

1. Complete vehicle 2, remote controller 3, English instruction manual 4, lithium battery 5, USB charger 6, DIY adhesive for double doors 7, damping adjusting retaining ring 8, metal bolt 9 and small cross screwdriver.

Product features:

1. The simulation structure design is adopted, which has the control feeling of a real car and realizes full-scale stepless speed change, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turn and right turn;

2. Applicable sites: flat land, sandy land, mud land and grassland.

3. Four-wheel drive: front and rear vertical springs are used for shock absorption, and double wishbone independent suspension system;

4. 2.4G full-scale synchronous remote control system. Full-scale throttle/steering;

5. 2.4G splash-proof four-way 30A integrated electric adjustment/reception;

6. Front wheel cross ball joint transmission shaft and rear wheel split dog bone transmission shaft;

7. Five-wire 17G steering gear;

8. Super battery power: 7.4V, 18650-1300mAh Li-ion battery (T plug), discharge rate 10C；;

9. The whole vehicle adopts 16 ball bearings;

10. Metal second floor, metal front and rear arm yards, and metal middle transmission shaft;

11. The car shell is made of high-toughness explosion-proof PVC car shell and high-strength anti-roll skeleton;

12. The car shell is equipped with LED headlights, LED roof headlights and LED roof rear lights; (Three modes: always on, slow flashing, flashing);

13, simulation of off-road tires, strong grip;

Product number: SCY-16106PRO

Product name: 1/16 electric four-wheel drive off-road vehicle (desert card)

Frequency: 2.4GHz (supporting multiple cars to compete in the same field)

Product color: purple/blue

Remote control battery: 3 * “AA” (to be purchased separately)

Product battery: 7.4V 1500mAH 15C lithium ion battery (T plug)

Motor: 2847 brushless motor (4000 KV value)

Electric adjustment: 35A 2S integrated control (splash-proof)

Product speed (km/h): 70 (top speed)

Remote control time (minutes): 15-18

Charging time (minutes): 180-210

Remote control distance (m): ≥120

Product specification (cm): 32 * 20.5 * 14

Specification of remote controller (cm): 13 * 7.5 * 21

Color box size (cm): 33.5 * 19.4 * 23.7

Product configuration:

1. Complete vehicle 2. Remote controller 3. Manual 4 in Chinese and English. Lithium battery 5. USB charger 6. Tail 7. Head-up wheel 8. Damping adjusting buckle.

9. Metal bolt 10, Phillips screwdriver 11, hexagon socket 12, and instruction insert without brush printing.

Product features:

1. The simulation structure design is adopted, which has the control feeling of a real car and realizes full-scale stepless speed change, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turn and right turn;

2. Applicable sites: flat land, sandy land, mud land and grassland.

3. Four-wheel drive: front and rear vertical springs are used for shock absorption, and double wishbone independent suspension system;

4. 2.4G full-scale synchronous remote control system. Full-scale throttle/steering;

5. Metal differential, metal differential cup, powder planetary gear, powder driving gear, powder main gear, metal front knuckle+metal rear axle seat;

6. Metal CVD front transmission shaft, metal rear dog bone and metal wheel cup;

7. Three-wire 17G digital steering gear;

8. 7.4V, 18650-1500mAh Li-ion battery (T plug), discharge rate 15C；;

9. Add remote control panel function: adjust the rudder quantity;

10. The whole vehicle adopts 16 ball bearings;

11. Metal second floor, metal front and rear arm yards, and metal middle transmission shaft;

12. The car shell is made of high-toughness explosion-proof PVC car shell and high-strength anti-roll skeleton;

13. Equipped with LED headlights, LED roof front lights, and LED roof rear lights on the car shell; (Three modes: constant light, slow flash, flash);

14. Equipped with a lifting wheel;

15. Simulated large foot tires with strong grip;
