A160-J3 Video of Replacing the Receiver Board and Installing and Calibrating the Servo

Please note:

Dear friends, when you receive the package, please take out the aircraft and open the hatch of the aircraft receiving panel to check

Step 1: Connect the aircraft battery and check whether the steering gear connecting rod is level (do not turn on the remote control, cannot refuel;);

Step 2:
a. If the steering gear connecting rod is not horizontal (as shown in Figure 1), it is wrong,
Solution: Turn off the aircraft battery, loosen the two servo screws with a screwdriver, and adjust the level of the connecting rod, as shown in Figure 2, the problem is solved.
b. If the servo link lever is kept level (as shown in Figure 2), it is correct, connect the remote controller and the aircraft, and fly normally.

Specification:

Brand: Wltoys

Model: A160 J3

Material: EPP

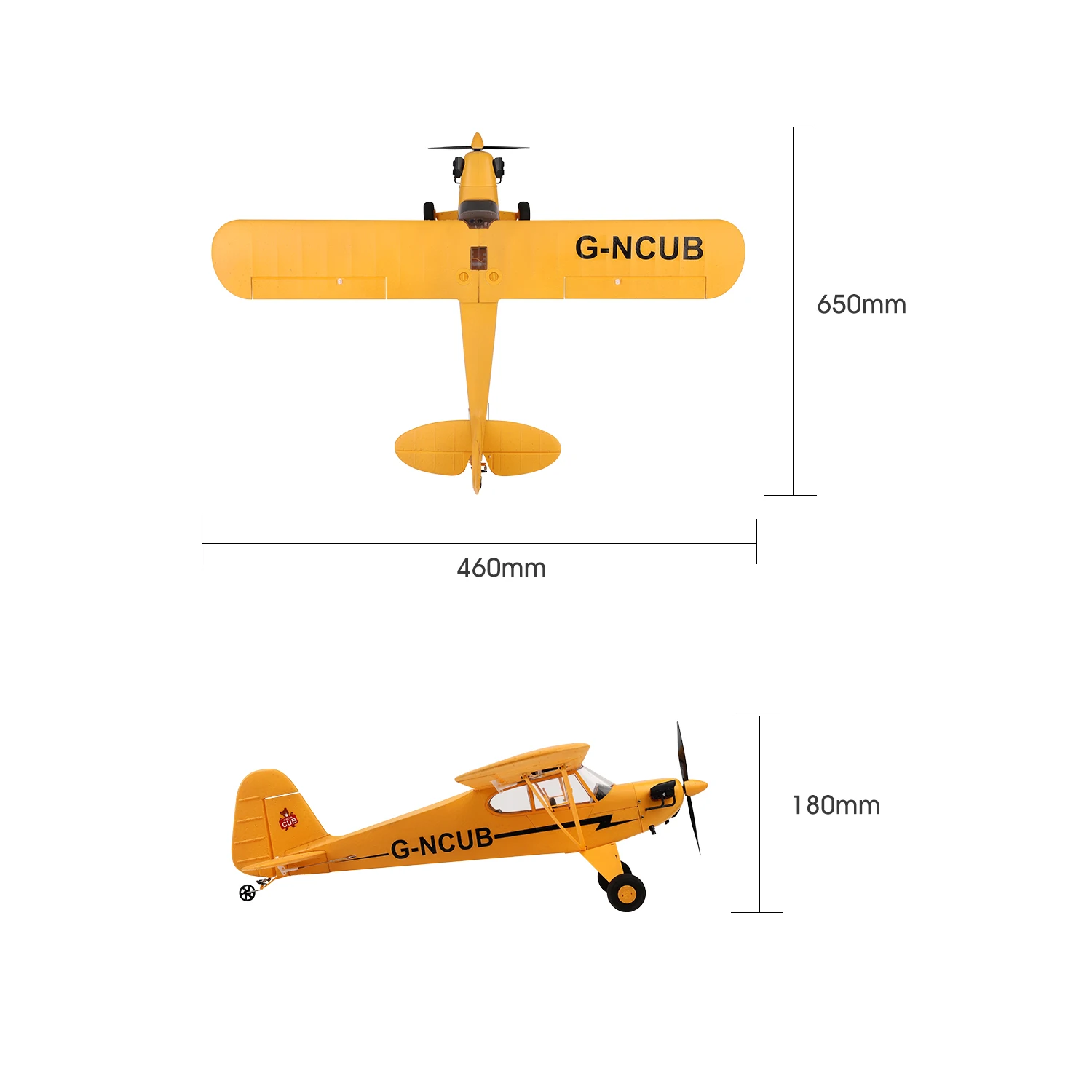

Wingspan: 650mm

Length: 460mm

Color box size (CM): 50.5 * 15.1 * 20.8mm

Flying weight: 145g

Color: yellow

Flight time: about 6 minutes

Charging time: 30-60 minutes

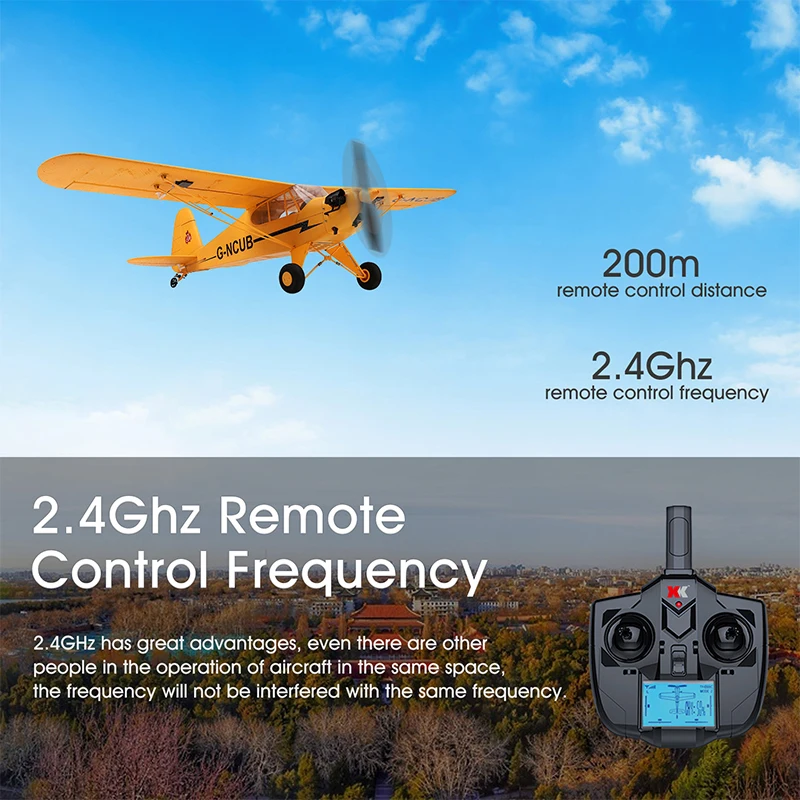

Remote control mode: 2.4G remote control

Remote control distance (m): about 200 meters

Motor:1406 brushless motor

Battery: 7.4V (500MAH)

Features:

-Adopt high-efficiency brushless motor, full of power. The 3D6G system has increased stability, a reasonable aerodynamic layout,and the flight is very stable. It is also easy for beginners to fly.

-High-fidelity appearance, detachable wing structure, easy to carry.

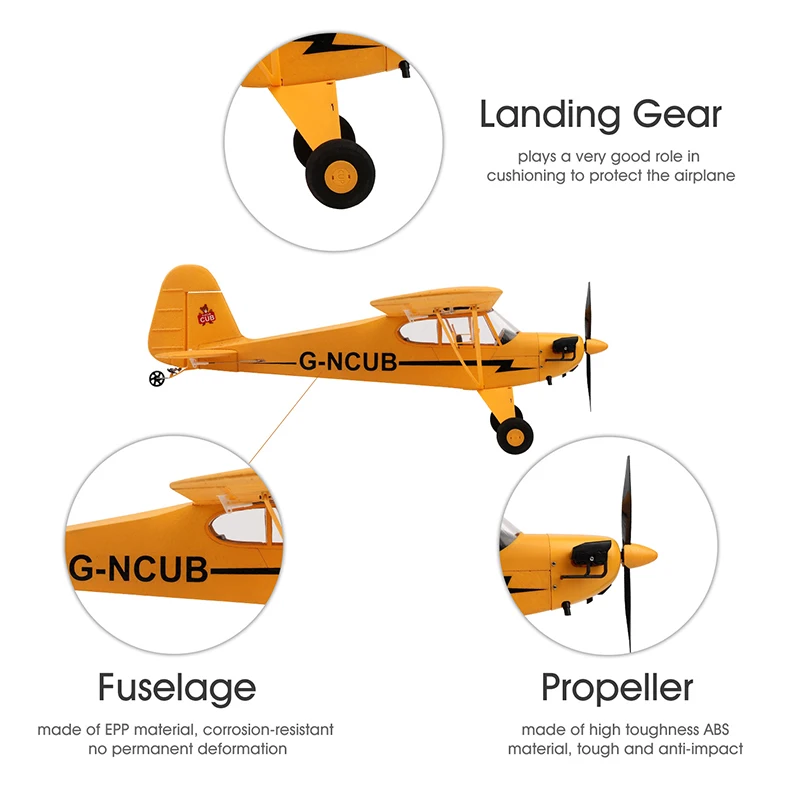

-Adopt EPP material in one piece, the appearance is smooth and very impact-resistant, the total weight is only 145g.

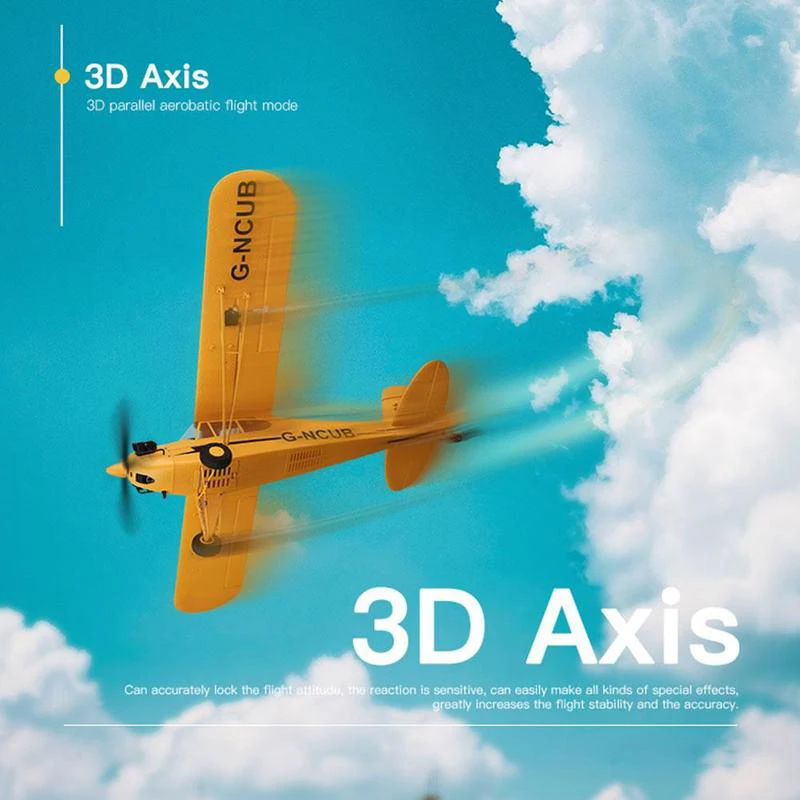

-3-axis 6-axis gyroscope mode conversion function, 3-axis gyroscope lock mode, increase the stability of the attitude, even if you are only a primary flight level, you can also make the same action as a professional master. The 6-axis mode increases stability.

-In any case, as long as the joystick is released, the aircraft will maintain a stable flight attitude.

-The remote control has a large and small rudder setting. The small rudder is suitable for beginners to fly.

The large rudder can easily make some movements such as somersaults and spirals.

-Equipped with high discharge rate battery, power flight is about 6 minutes, and the empty time is more than 10 minutes.

-7 Lithium polymer special USB charger, charging time 30-60 minutes.

Package included:

1 x RC Airplane body

1 set x Left and right wings

1 x Remote control

1 x Instruction manual
