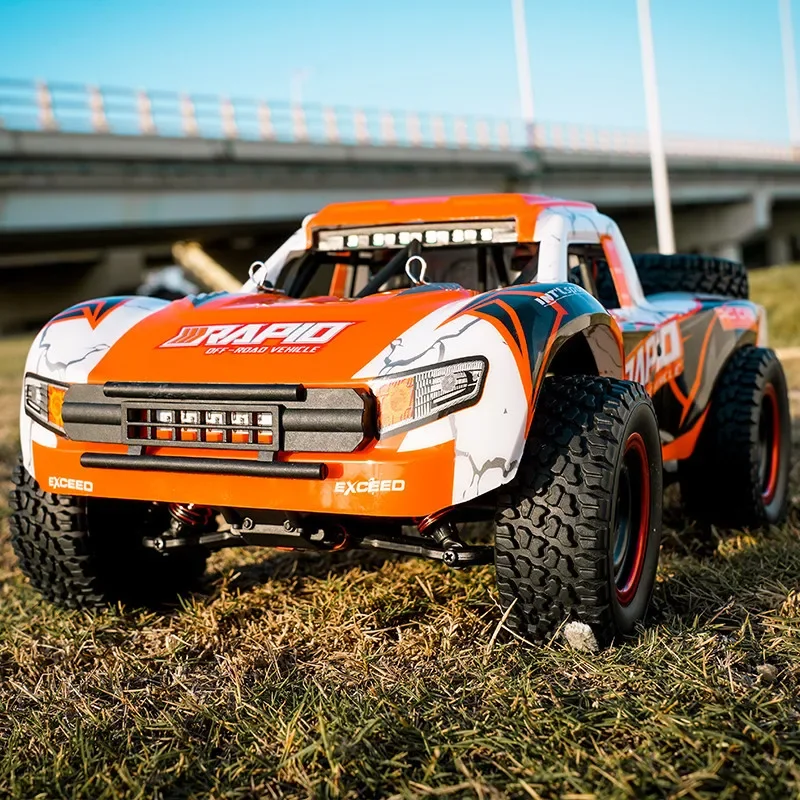

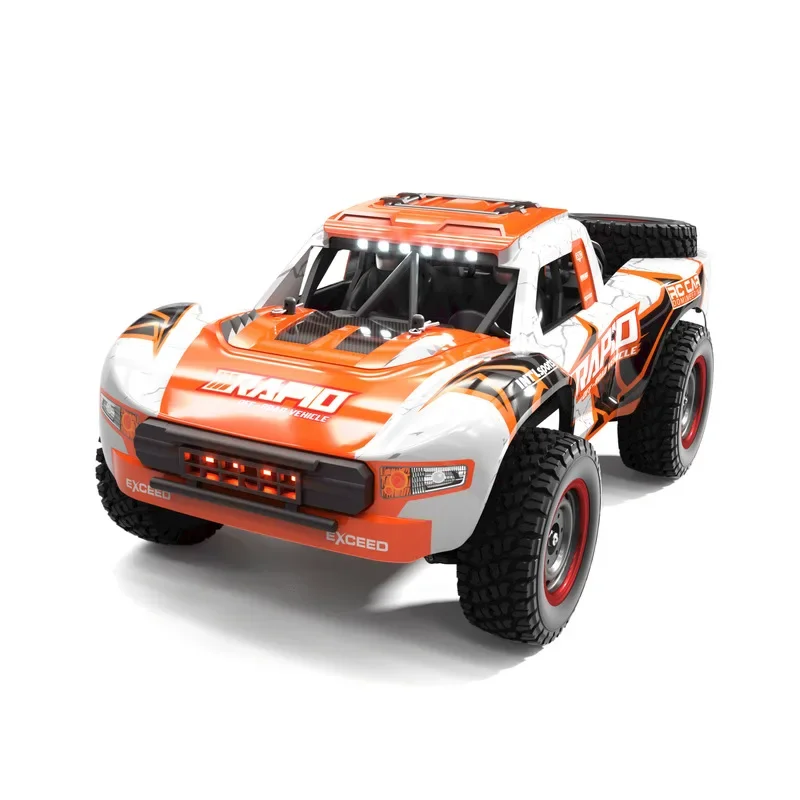

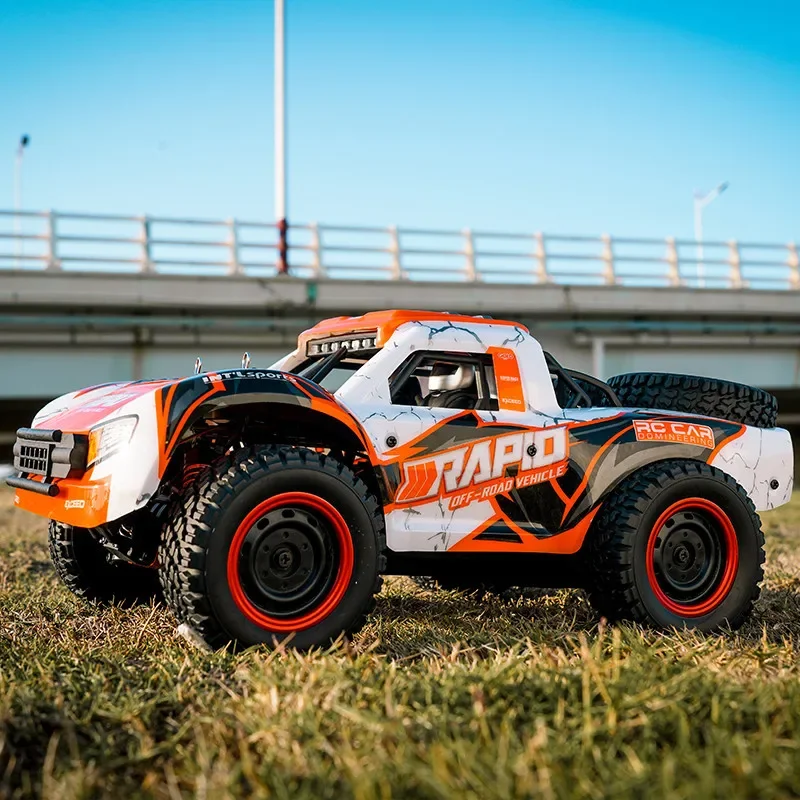

Product configuration: Electric four-wheel drive off-road vehicle (UDR)
Product material: hardware; electronics; plastic
Product size:34.5*20.5*14.8 CM
Color box size (cm):35.5*18.8*26 CM
Weight of the whole set (g): with brush: 1900g brushless: 2000g
Packaging: English handheld open box color box
Color: blue / red (A models) orange (B models)
Body battery: brushed 7.4V 1300mAH 15C lithium-ion battery (T plug) brushless: 7.4V 1500mAH 15C lithium-ion battery (T plug)
Manipulation time:15-18 minutes (continuous full speed running)
Remote control batteries: 3 “AA” (not pack)
Charging time:3-3.5 hours (USB balance charge)
Frequency:2.4GHz (support multiple cars on the same field)
Remote control category: full scale synchronous control system (gun control)
ESC/receiver:35A ESC/receiver integrated control (splash-proof)
Speed:Brushed:48km/h (top speed) Brushless:70KM/h
Light configuration:LED headlight, LED dome light, LED tail dome light
Remote control distance (m):≥120m
Motor: brushed: RC390 high-speed carbon brush strong magnetic (magnetic protection + heat sink) brushless: 2847 brushless motor (4000 KV value)
Servo: brushed: five-wire 17G steering servo brushless: three-wire 17G digital servo
Wheelbase parameters:Wheelbase: 185mm; wheelbase: 188mm; wheel diameter: 85mm
Differential structure:planetary gear differential
Protection function: 1. charging; 2. jamming; 3. high temperature; 4. low pressure

Functions:
1. the use of simulation structure design, with real car control feeling, to achieve full proportional stepless speed, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turn, right turn;
2. Applicable sites: flat, sand, mud, grass.
3. 4WD drive: front and rear upright spring damping, double-wishbone independent suspension system;
4. 2.4G full-proportional synchronized remote control system . Full proportional throttle/steering;
5. 2.4G splash-proof four-way 30A integrated ESC/receiver;
6. front wheel cross ball joint drive shaft, rear wheel split dog bone drive shaft;
7.  five-wire 17G servo;
8. super battery power: 7.4V, 18650-1500/1300mAh Li-ion battery (T plug), discharge rate 10C;
9. the whole car with 16 ball bearings;
10. Metal second floor plate, metal front and rear arm code, metal mid-drive shaft;
11. The shell adopts high toughness explosion-proof PVC shell;
12. the shell is equipped with LED headlights, LED dome light, LED tail dome light; (three modes: constant light, slow flash, fast flash);
13. simulation of off-road tires, strong grip;

Accessories: 1) the whole car; 2) remote control; 3) Chinese and English instructions; 4) lithium battery; 5) USB balance charge; 6) tail; 7) head-up wheel; 8) shock adjustment buckle; 9) metal pins; 10) hexagonal sleeve; 11) brushless version of the instruction booklet insert

Attention:
1: Charging protection: constant current and voltage balanced charging, protection function for battery overcharge and overcurrent.
2: Motor anti-seize protection: the motor stops working when overloaded
3: High temperature protection: When the working temperature is higher than the set situation, the drive control circuit stops working and resumes work after the temperature drops to a safe value.
4: ESC low voltage power-off function, the battery is lower than about 6.3-6.4V, automatic power-off, to prevent damage to the battery over discharge.
the above parameters are the standard configuration;
Note: can be added separately or change the internal accessories and configuration, need to re-quote In order to save space on the package, the tail has been disassembled at the factory, placed in the accessories package and equipped with screws and screwdrivers, consumers install their own.

Brushless High-speed cars

Brush remote control car
