Notes:

1: Charging protection: constant current and constant voltage balanced charging, protection against battery overcharge and overcurrent.

2: Motor anti-stuck protection: When overloaded, the motor stops working.

3: High temperature protection: When the working temperature is higher than the set temperature, the drive control circuit stops working and resumes working after the temperature drops to a safe value.

4: The low voltage power-off function of the electric adjustment, the battery is lower than about 6.3-6.4V, and the power is automatically cut off to prevent the battery from being damaged by over-discharge.

5: The remote control battery is not included.

Product parameter configuration:

1. It adopts a simulation structure design, has the control feeling of a real car, realizes full-proportional stepless speed change, high-speed driving, sudden acceleration, deceleration, braking, reversing, left turn, right turn;

2. Applicable sites: flat land, sand, mud, grass.

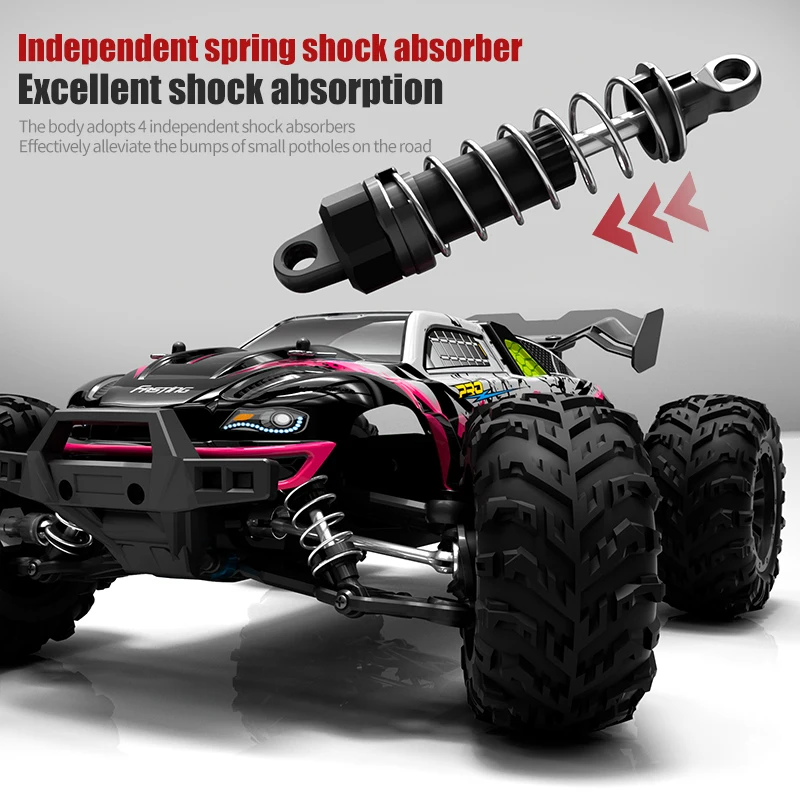

3. Four-wheel drive: front and rear upright spring shock absorbers, double wishbone independent suspension system;

4. 2.4G full-proportional synchronous remote control system. Full-proportional throttle/steering;

5. Metal differential, metal differential cup, powder planetary gear, powder driving gear, powder main gear;

6. Metal CVD front drive shaft, metal rear dog bone, metal wheel cup;

7. Three-wire 17G digital servo;

8. 7.4V, 18650-1500mAh Li-ion battery (T plug), discharge rate 15C;

9. New remote control panel function: rudder adjustment;

10. The whole car uses 16 ball bearings;

11. Metal second floor, metal front and rear armrests, metal middle transmission shaft;

12. The car body uses high-toughness explosion-proof PVC car body;

13. Equipped with LED headlights; (three gear modes: always on, slow flash, fast flash);

14. Equipped with head-up wheels;

15. Simulated big-foot tires with strong grip;

Package includes:

1) The whole car;

2) Remote control;

3) Chinese and English manuals;

4) Lithium battery;

5) USB balance charger;

6) Tail;

7) Head-up wheels;

8) Shock absorption adjustment buckle;

9) Metal pin;

10) Cross screwdriver;

11) Hexagonal socket;

12) Brushless version instruction book insert
